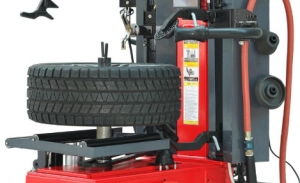

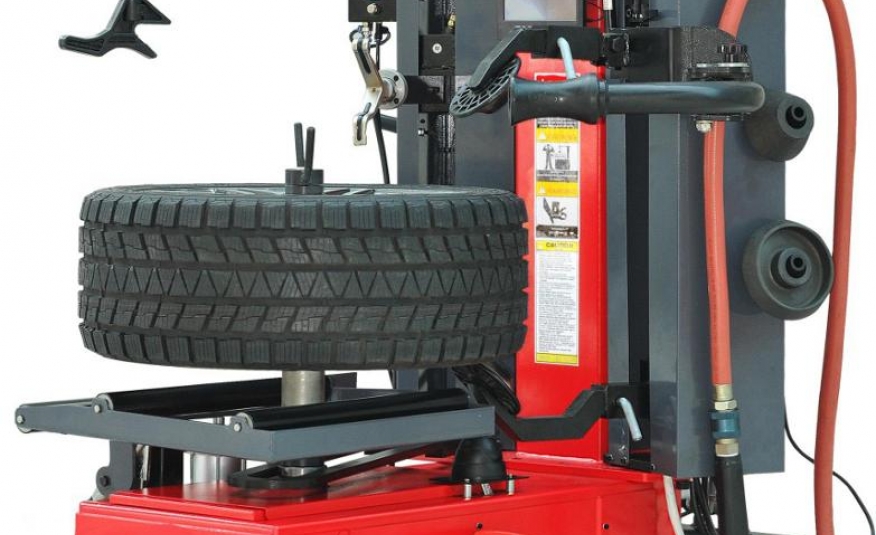

This Automatic Tire Changer integrates electricity, gas, hydraulic, high-end configuration, there are dual-use tire- pressing blocks(figure 03), can press tires and support tires; the right arm is equipped with two dish wheels upper and lower(figure 01), can automatically complete sholveling tire to the above and below tire mount, the upper disc wheel has a automatic raised mechanical devices, it can raise automatically when rising to the upper point; the green button in the middle of the crossed hook head switch is sensing orientation button, pressing and holding this button, hook head will automatically stay on the tangential points of tire-pressing wheel, which is on the outer rim of the auxiliary, safe, reliable, harmless to the rim; the frame on the left side, can lift tire no th the clamping disc.
Rim Diameter
10"-30"
Max. Wheel Diameter
1250 mm
Tire Width
3"-12"
Working Pressure
8-12 Bar
Voltage
380v
Motor Power
1.5 kw
Machine Weight
571 kgs
Package Size
1700*1150*1900mm
20' /40' GP Loading Quantity
6/14 sets
